Compact Walk in Baths Series

Walk-in soaking tubs designed with simplicity and safety in mind.

Minimal Footprint

Designed For 3/4 Bath and Washrooms

Easy to Install; Fits Most Hall and Doorways

Model 2646

Our smallest walk in bathtub with shower features space-saving construction built around a compact footprint.  This model is ideal for small spaces and accommodates three-quarter size bathrooms and washrooms without sacrificing comfort.

The unique width and length allows installers to easily maneuver the 2646 through narrow passages, doorways, and hallways, keeping installation costs down.

An ideal choice for either petite users between 80-140 lbs. and shorter than 5’6”, or for installation in a 48” long shower stall.

Dimension

Actual Size (W x L x H)

26" x 45 3/4" x 37 3/8"

Seat Height

16.5"

Seat Width

19"

Seat Depth

11"

Door Opening Width

16.5"

Water Capacity with a 200 lb user (Gal.)

38

Colors Available

White / Biscuit

Door Opening

Right or Left
Wall Tiles FlangeNone (easy-to install) or 2 sides
Specification PDF Download

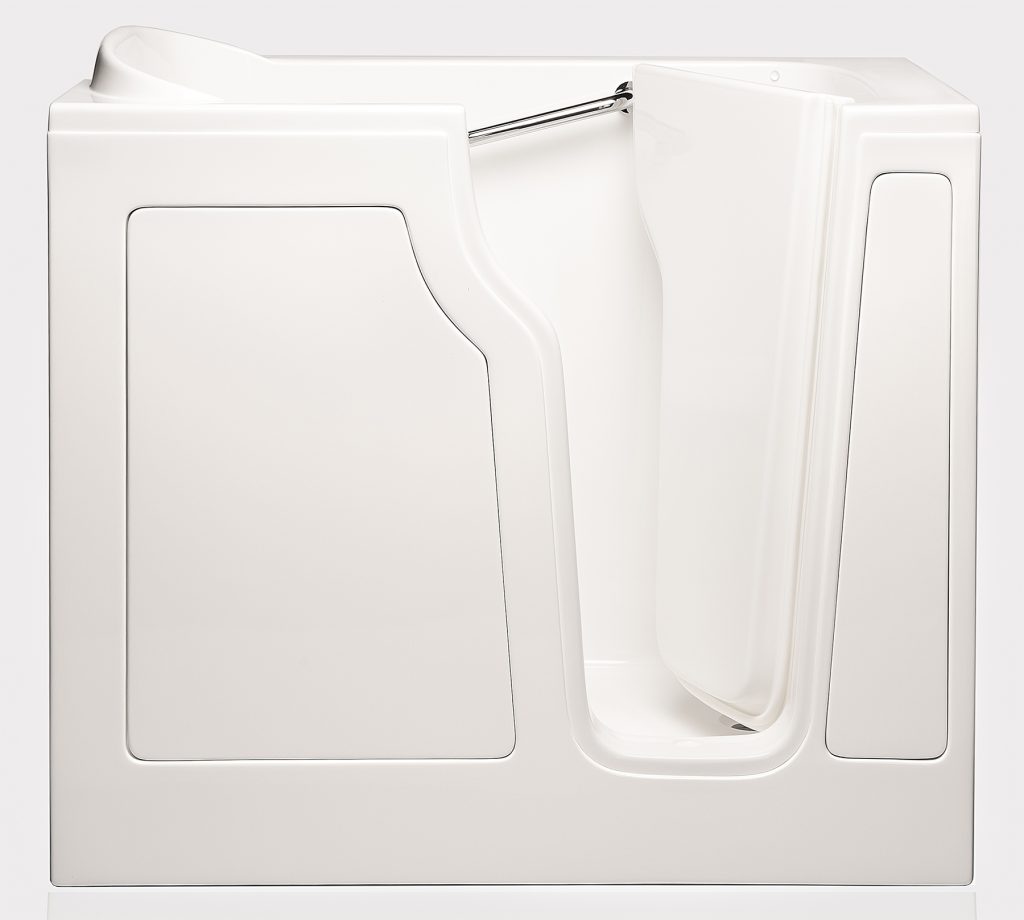

Model 2848

Similar to the 2646, this model is a slightly larger version than its predecessor, sitting 2 inches wider and longer for additional room and comfort.

An optimal choice for bathers between 100-160 lbs. and shorter than 5’10” tall. The curved, “knee saving” door cutaway makes closing the door a much simpler process while seated, without sacrificing additional space.

This compact design enables mobile homeowners and those with a three-quarter bath to experience a maximum comfort bathing experience within a minimal footprint.

Dimension

Actual Size (W x L x H)

28 1/4" x 47 1/2" x 40"

Seat Height

17 1/8"

Seat Width

20"

Seat Depth

12"

Door Opening Width

19 1/8"

Water Capacity with a 200 lb user (Gal.)

52

Colors Available

White / Biscuit

Door Opening

Right or Left
Wall Tiles FlangeNone (easy-to install) or 2 sides
Specification PDF Download
AT2653Front 1024x811

Model 2653

Our walk in soaking tub offers an elegant, safe and rewarding spa experience within a unique design.

This space-saving design is often the most cost-effective unit as its outer dimensions minimize construction costs.

With its 16″ wide doorway and 36″ overall height, the 2653 is an excellent pairing for petite users between 90-140 lbs. and roughly 5’4″ tall.

Dimension

Specifications:

Actual size (W x L x H)26″ x 53″ x 36″
Shipping size (W x L x H)28″ x 54″ x 45″
Seat Height17"
Seat Width17.5"
Seat Depth14"
Door Opening Width16"
Inside Length43.5"
Water Capacity with 200 lb user (Gal.)42
Colors AvailableWhite / Biscuit
Door Opening Left or Right
Wall Tiles FlangeNone (easy to install)
Specification PDF Download
3138 1800 Px AT Website Redesign 1024x936

Model 3138

With its unique square-shaped compact design, the  3138, affectionately called the “Cube Tub,” is a smaller model that can be installed where other traditional walk-in tubs cannot.

The 3138 is the perfect solution as a free-standing tub or for a three-quarter bath with an existing 36″x 36″ shower stall. The unit comes equipped with 2 integrated side panels and an outward-swinging door which allows for a variety of creative installations, such as laundry nooks, washrooms and garages.

Unlike other larger tub models, the 3138 comes standard with a Kingston single-piece faucet set and attached handheld sprayer that mounts on the tub deck. The adjustable shower slide bar and custom-tailored shower curtain are the most common accessories paired with the 3138 to maintain the showering function of the space.

Dimension

Actual Size (W x L x H)

31.5" x 37.5" x 38.5"

Seat Height

17"

Seat Width

22"

Seat Depth

11"

Door Opening Width

24"

Water Capacity with a 200 lb user (Gal.)

42

Colors Available

White / Biscuit

Door Opening

Right or Left
Wall Tiles FlangeNone (easy-to install) or 2 sides
Specification PDF Download

Standard Features

Safety Features

Optional Features

*note: Some features may not be available with certain models. Please refer to your dealer for details.
